Hi guys.... I love this system buy i am having some issues where as you can see in the photos they are kind of warping... even when they came out from the buildplate completely flat.

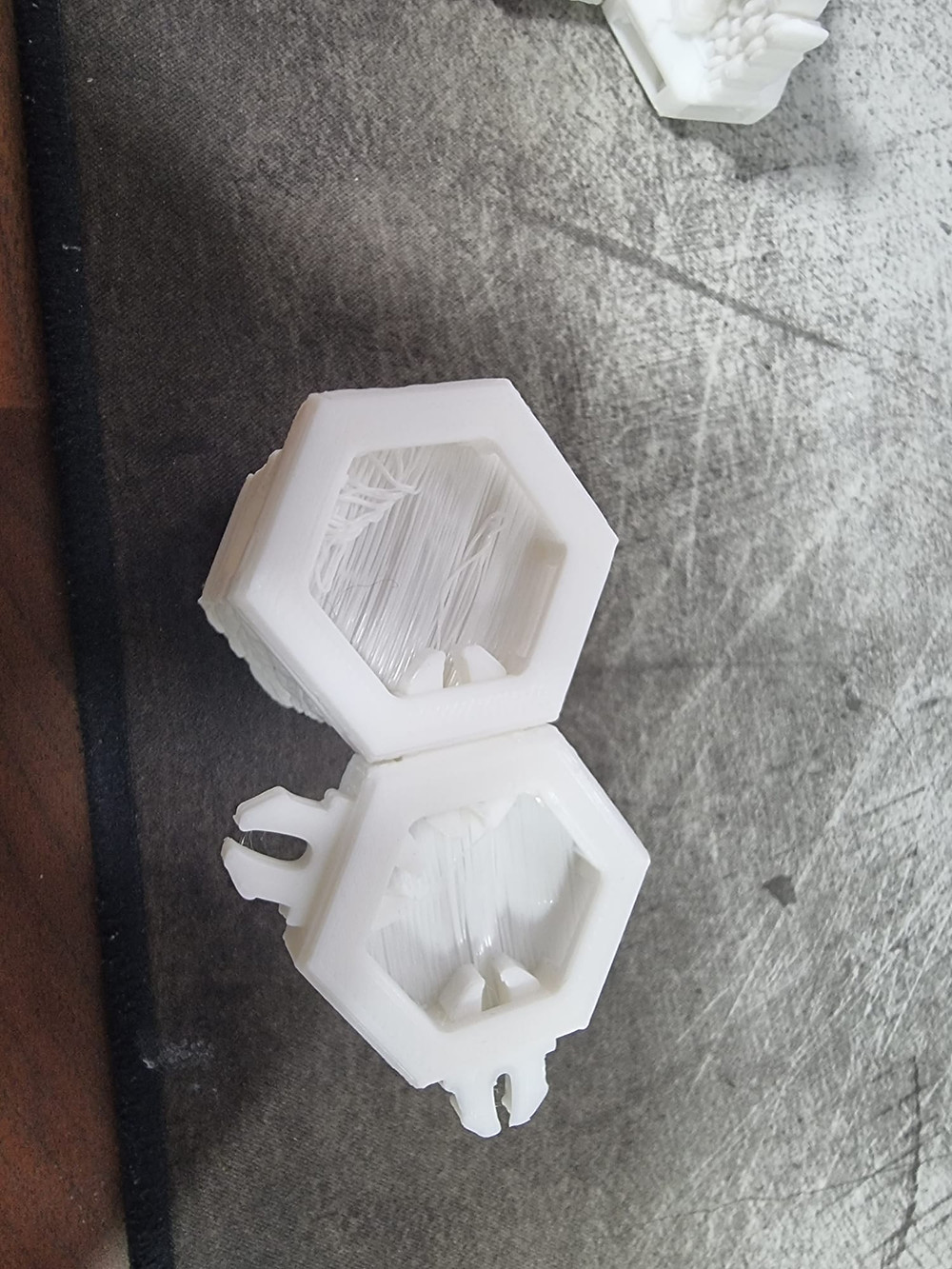

As you can see on the picture 3 and 4... i am on the first layer of the brigde ... is kind of weard.... What can i do? HELP Please
Note1: everything separated is completely flat.... but when joined together .... warps.

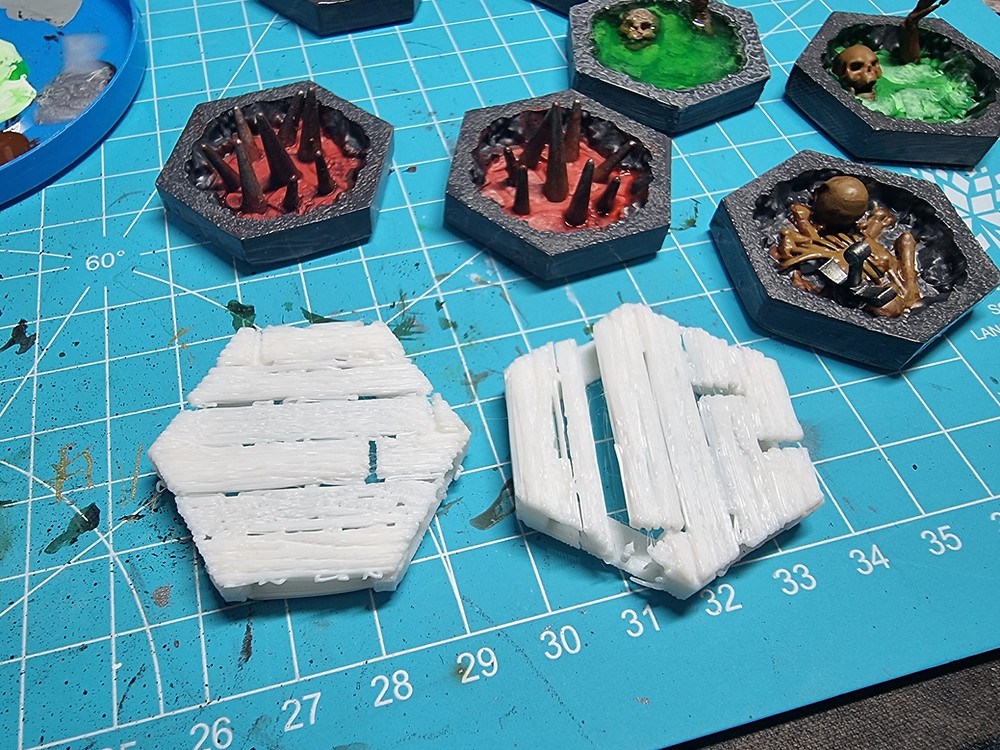

Note2: If i print the wood floor vertically (as you can see on the first and second picture)..... well you see the result....
thanks

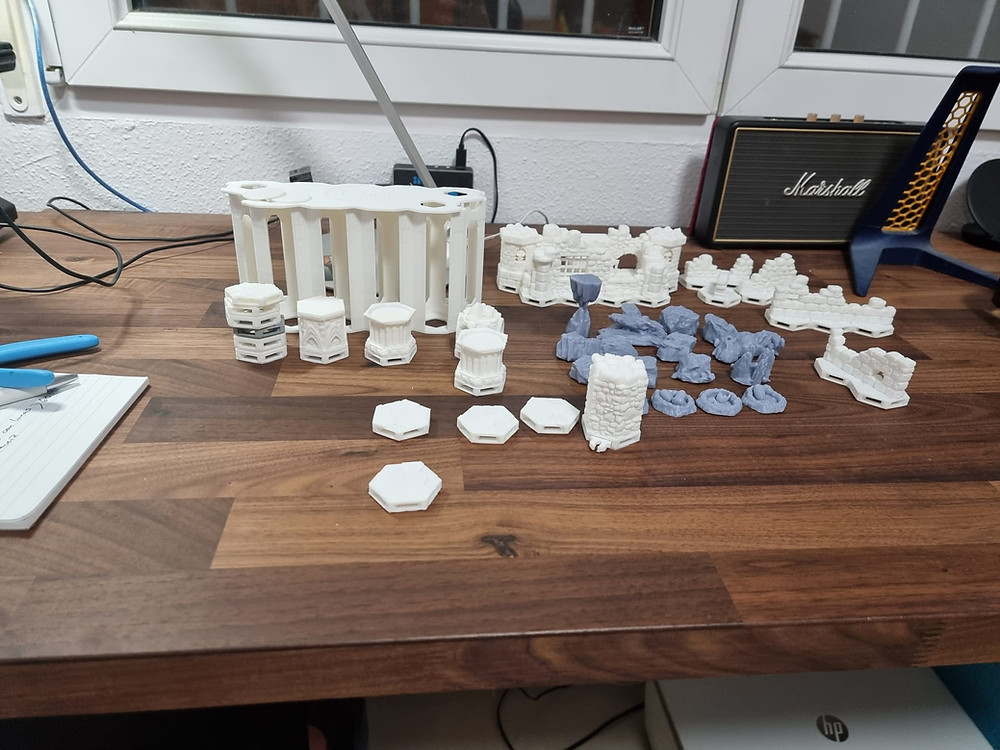

Last picture is all that i have printed so far ;P
A couple of workarounds for floor tiles that "warp" upwards when clipped together..
I'm certainly no expert, have only had a 3d printer for around 3 months so far, but I encountered a similar issue with the tiles "warping" after being connected together with the open lock clips.
I tried using the springy open lock clips that you can download from Thingiverse and that solved the issue for me mainly because the clips are not so tight fitting and allow a little movement between tiles. I re-scaled the clips until I found a fit that suited best.
I anticipated that a slight elephant foot of tiles printed horizontally would also cause the "warping" issue so I edited the horizontally printed floor tiles (Dungeon, Outdoor, Cave, etc) to have a 0.5mm chamfer on all edges. I know it's not the best solution but it worked.
The slicing image you posted looks perfectly fine, I get the same in Cura.
The issue you are having printing the Indoor wood tiles could possibly be an extrusion problem but as I said I am no expert and can't offer any advice there.
I am also having this issue. Did you ever figure out what was causing it?
This is how it looks on cura... is it normal?
